Suzuki DF 115 Parts Listings DF 115T (S/N 373695 & Older)

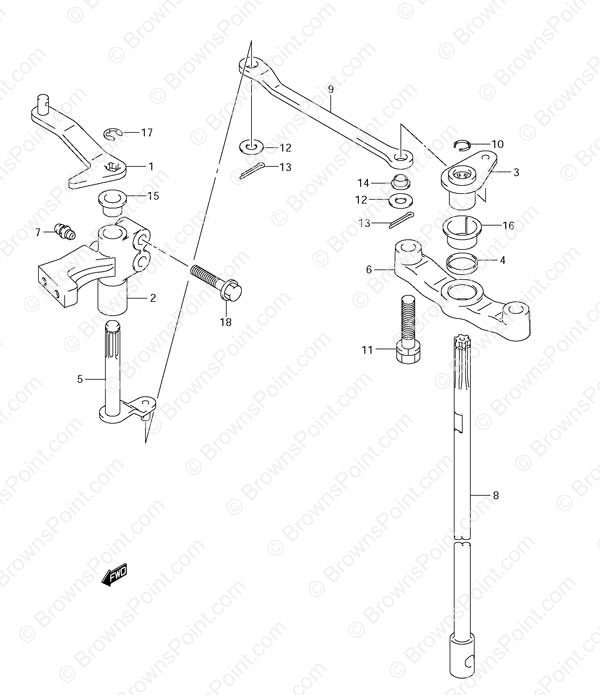

Fig. 20 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 21110-90J02 Clutch Lever
SKU: 21110-90J02 Weight: 0.250000 Brand: Price: $ 37.80 |
Clutch Lever | 1 | $ 37.80 | Requires Ref# 2-1 | |
| 1-2 | 21110-90J02 Clutch Lever
SKU: 21110-90J02 Weight: 0.250000 Brand: Price: $ 37.80 |
Clutch Lever | 1 | $ 37.80 | S/N 252817 Newer | |
| 2-1 | 21151-90J01 Clutch Lever Holder
SKU: 21151-90J01 Weight: 0.100000 Brand: Price: $ 44.08 |
Clutch Lever Holder | 1 | $ 44.08 | Requires Ref# 1-1 | |
| 2-2 | 21151-90J01 Clutch Lever Holder
SKU: 21151-90J01 Weight: 0.100000 Brand: Price: $ 44.08 |
Clutch Lever Holder | 1 | $ 44.08 | S/N 252817 Newer | |
| 3 | 21210-90J01 Clutch Shaft
SKU: 21210-90J01 Weight: 0.100000 Brand: Price: $ 57.36 |
Clutch Shaft | 1 | $ 57.36 | ||
| 4 | 21221-90J00 Clutch Shaft Holder Bushing
SKU: 21221-90J00 Weight: 0.060000 Brand: Price: $ 2.92 |
Clutch Shaft Holder Bushing | 1 | $ 2.92 | ||
| 5 | 21230-90J00 Clutch Shaft Arm
SKU: 21230-90J00 Weight: 0.140000 Brand: Price: $ 56.72 |
Clutch Shaft Arm | 1 | $ 56.72 | ||
| 6 | 21311-90J00 Clutch Shaft Holder
SKU: 21311-90J00 Weight: 0.100000 Brand: Price: $ 30.97 |
Clutch Shaft Holder | 1 | $ 30.97 | ||
| 7 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 8-1 | 23111-90J02 Clutch Rod (L)
SKU: 23111-90J02 Weight: 1.000000 Brand: Price: $ 81.27 |
Clutch Rod (L) | 1 | $ 81.27 | ||
| 8-2 | 23111-90J12 Clutch Rod (X)
SKU: 23111-90J12 Weight: 0.840000 Brand: Price: $ 84.90 |
Clutch Rod (X) | 1 | $ 84.90 | ||
| 9 | 23115-90J00 Clutch Lever Link
SKU: 23115-90J00 Weight: 0.100000 Brand: Price: $ 12.22 |
Clutch Lever Link | 1 | $ 12.22 | ||
| 10 | 23117-90J00 Clutch Rod Ring (NLA)
SKU: 23117-90J00 Weight: 0.100000 Brand: Price: $ 1.11 |
Clutch Rod Ring (NLA) | 1 | $ 1.11 | ||
| 11 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 2 | $ 6.05 | ||
| 12 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 13 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 14 | 09306-06004 Bushing
SKU: 09306-06004 Weight: 0.060000 Brand: Price: $ 1.38 |
Bushing | 2 | $ 1.38 | ||
| 15 | 09306-10001 Bushing
SKU: 09306-10001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 16 | 09306-16004 Clutch Shaft Bushing
SKU: 09306-16004 Weight: 0.060000 Brand: Price: $ 3.87 |
Clutch Shaft Bushing | 1 | $ 3.87 | ||
| 17 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 18 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
