Suzuki DF 150AP Parts Listings - 2017
S/N 15003P-710001 to 15003P-71XXXX

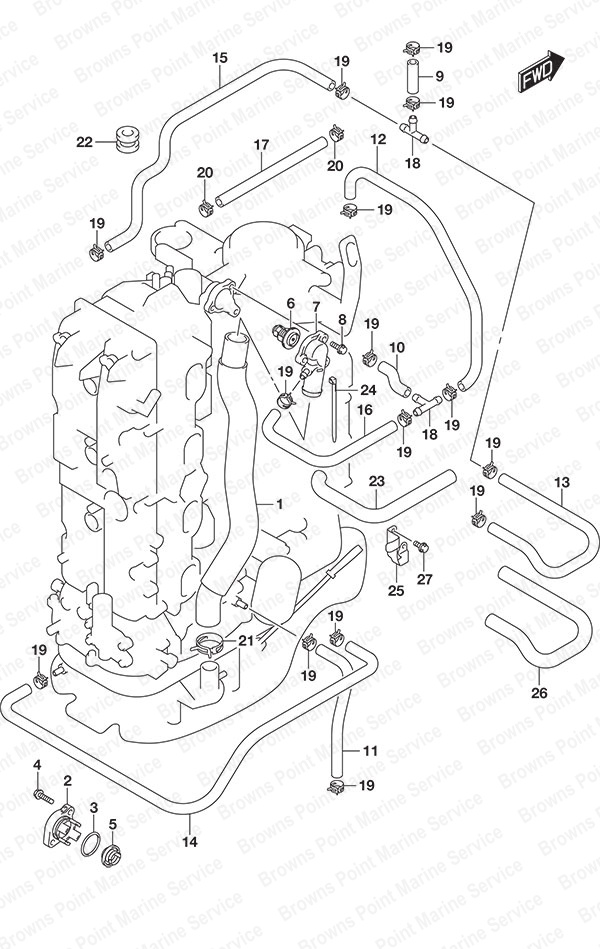

Fig. 162 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-96L00 Water Return Hose
SKU: 11196-96L00 Weight: 0.500000 Brand: Price: $ 41.64 |
Water Return Hose | 1 | $ 41.64 | ||
| 2-1 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | Black | |
| 2-2 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 3 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 4 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 5 | 17660-90J00 Water Pressure Valve
SKU: 17660-90J00 Weight: 0.060000 Brand: Price: $ 19.16 |
Water Pressure Valve | 1 | $ 19.16 | ||
| 6-1 | 17670-90J21 Thermostat (50c)
SKU: 17670-90J21 Weight: 0.250000 Brand: Price: $ 62.70 |
Thermostat (50c) | 1 | $ 62.70 | Standard | |
| 6-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 7 | 17680-96J00 Thermostat Cover
SKU: 17680-96J00 Weight: 0.250000 Brand: Price: $ 44.02 |
Thermostat Cover | 1 | $ 44.02 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 9 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->40 | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->60 | |
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->220 | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->240 | |
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->380 | |
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->540 | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | ||
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->490 | |
| 17 | 09352-90134-600 Hose (9x13x600)
SKU: 09352-90134-600 Weight: 0.160000 Brand: Price: $ 11.50 |
Hose (9x13x600) | 1 | $ 11.50 | L:600->340 | |
| 18 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 2 | $ 2.65 | ||
| 19 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 16 | $ 2.09 | ||
| 20 | 09401-13425 Clip
SKU: 09401-13425 Weight: 0.125000 Brand: Price: $ 3.16 |
Clip | 2 | $ 3.16 | ||
| 21 | 09401-31407 Clip
SKU: 09401-31407 Weight: 0.060000 Brand: Price: $ 6.08 |
Clip | 1 | $ 6.08 | ||
| 22 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 1 | $ 3.31 | ||
| 23 | 18498-96L41 Hose Protector (10.2x11.8x430)
SKU: 18498-96L41 Weight: 0.250000 Brand: Price: $ 5.73 |
Hose Protector (10.2x11.8x430) | 1 | $ 5.73 | ||
| 24 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 25 | 11198-96L00 Water Return Bracket
SKU: 11198-96L00 Weight: 0.060000 Brand: Price: $ 9.89 |
Water Return Bracket | 1 | $ 9.89 | ||
| 26 | 18498-96L31 Hose Protector (10.2x11.8x300)
SKU: 18498-96L31 Weight: 0.250000 Brand: Price: $ 4.22 |
Hose Protector (10.2x11.8x300) | 1 | $ 4.22 | ||
| 27 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
