Suzuki DF 115 Parts Listings DF 115T (S/N 681517 & Older)

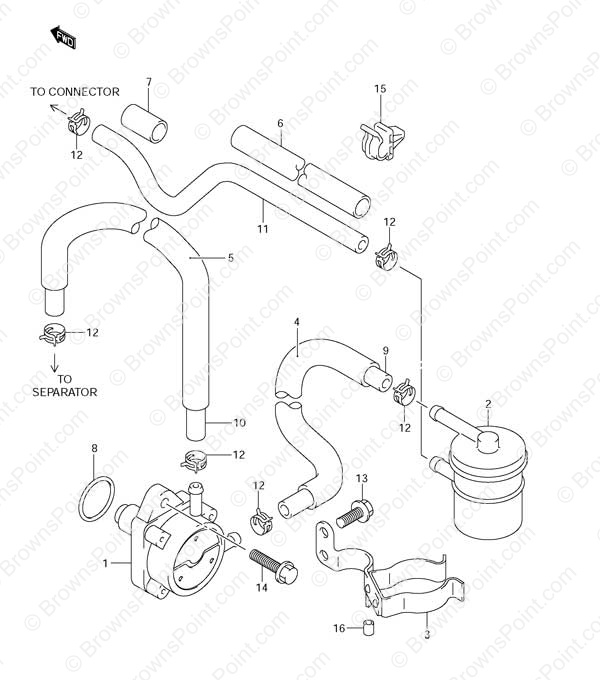

Fig. 12 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 165.75 |
Fuel Pump Assembly | 1 | $ 165.75 | ||
| 2 | 15410-87J10 Fuel Filter
SKU: 15410-87J10 Weight: 0.080000 Brand: Price: $ 10.61 |
Fuel Filter | 1 | $ 10.61 | ||
| 3 | 15420-90J10 Fuel Filter Bracket
SKU: 15420-90J10 Weight: 0.080000 Brand: Price: $ 14.36 |
Fuel Filter Bracket | 1 | $ 14.36 | ||
| 4 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->230 | |
| 5 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->450 | |
| 6 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->510 | |
| 7 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->160 | |
| 8 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 9 | 15192-90J11 Fuel Hose
SKU: 15192-90J11 Weight: 0.080000 Brand: Price: $ 16.09 |
Fuel Hose | 1 | $ 16.09 | Filter to Pump | |
| 10 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | Pump to Separator L:600->530 | |
| 11 | 15191-90J10 Fuel Hose
SKU: 15191-90J10 Weight: 0.220000 Brand: Price: $ 31.11 |
Fuel Hose | 1 | $ 31.11 | Connector to Filter | |
| 12 | 09401-11415 Clip
SKU: 09401-11415 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 6 | $ 2.27 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 14 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 15 | 09403-11314 Clamp
SKU: 09403-11314 Weight: 0.062500 Brand: Price: $ 3.31 |
Clamp | 1 | $ 3.31 | ||
| 16 | 09320-05016 Cushion (NLA)
SKU: 09320-05016 Weight: 0.200000 Brand: Price: $ 2.46 |
Cushion (NLA) | 1 | $ 2.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
