Suzuki DF 150AP Parts Listings - 2017
S/N 15003P-710001 to 15003P-71XXXX

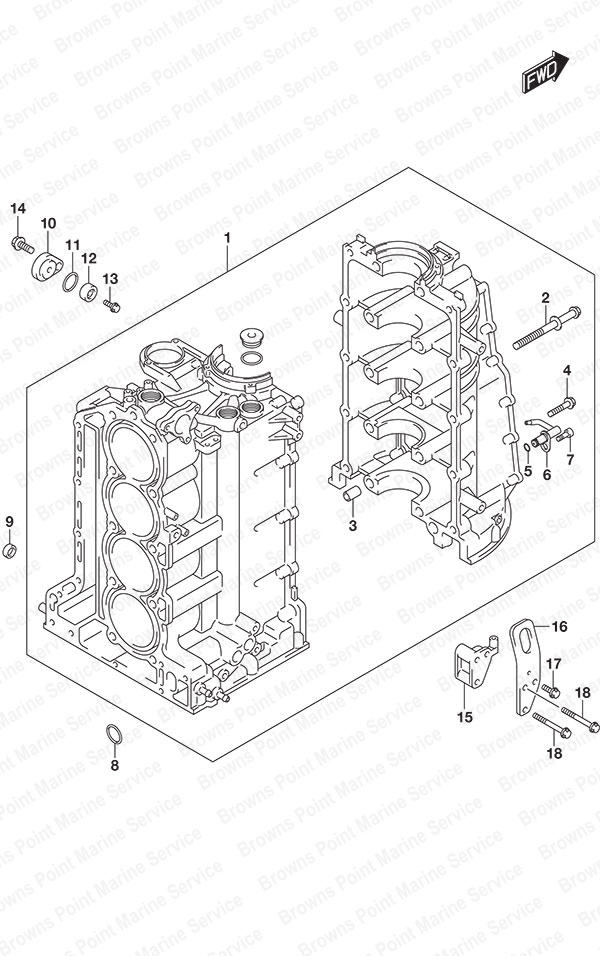

Fig. 113 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11300-96L01 Cylinder Block Assembly
SKU: 11300-96L01 Weight: 50.000000 Brand: Price: $ 2,813.22 |
Cylinder Block Assembly | 1 | $ 2,813.22 | ||
| 2 | 11117-96J01 Crankcase Bolt
SKU: 11117-96J01 Weight: 0.125000 Brand: Price: $ 9.18 |
Crankcase Bolt | 10 | $ 9.18 | ||
| 3 | 09206-14004 Pin (14x11.4x23)
SKU: 09206-14004 Weight: 0.100000 Brand: Price: $ 4.11 |
Pin (14x11.4x23) | 5 | $ 4.11 | ||
| 4 | 09103-10284 Bolt (10x45)
SKU: 09103-10284 Weight: 0.100000 Brand: Price: $ 4.13 |
Bolt (10x45) | 10 | $ 4.13 | ||
| 5 | 09280-05007 O-Ring
SKU: 09280-05007 Weight: 0.200000 Brand: Price: $ 1.66 |
O-Ring | 4 | $ 1.66 | ||
| 6 | 11390-96J00 Piston Cooling Jet
SKU: 11390-96J00 Weight: 0.250000 Brand: Price: $ 41.95 |
Piston Cooling Jet | 4 | $ 41.95 | ||
| 7 | 09106-06075 Bolt (6x12)
SKU: 09106-06075 Weight: 0.250000 Brand: Price: $ 2.49 |
Bolt (6x12) | 4 | $ 2.49 | ||
| 8 | 11318-96J00 Balancer Oil Gallery O-Ring
SKU: 11318-96J00 Weight: 0.062500 Brand: Price: $ 6.33 |
Balancer Oil Gallery O-Ring | 1 | $ 6.33 | ||
| 9 | 09329-14003 Side Cover Cushion
SKU: 09329-14003 Weight: 0.100000 Brand: Price: $ 2.72 |
Side Cover Cushion | 2 | $ 2.72 | ||
| 10 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 1 | $ 16.29 | ||
| 11 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 12 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 13 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 14 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 15 | 11294-96J00 Starboard Engine Hook Bracket
SKU: 11294-96J00 Weight: 0.500000 Brand: Price: $ 27.29 |
Starboard Engine Hook Bracket | 1 | $ 27.29 | ||
| 16 | 11291-96J00 Starboard Engine Hook (NLA)
SKU: 11291-96J00 Weight: 0.500000 Brand: Price: $ 12.82 |
Starboard Engine Hook (NLA) | 1 | $ 12.82 | ||
| 17 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 18 | 01550-08557 BOLT
SKU: 01550-08557 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 2 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
