Suzuki DF 115 Parts Listings DF 115T (S/N 152526 & Older)

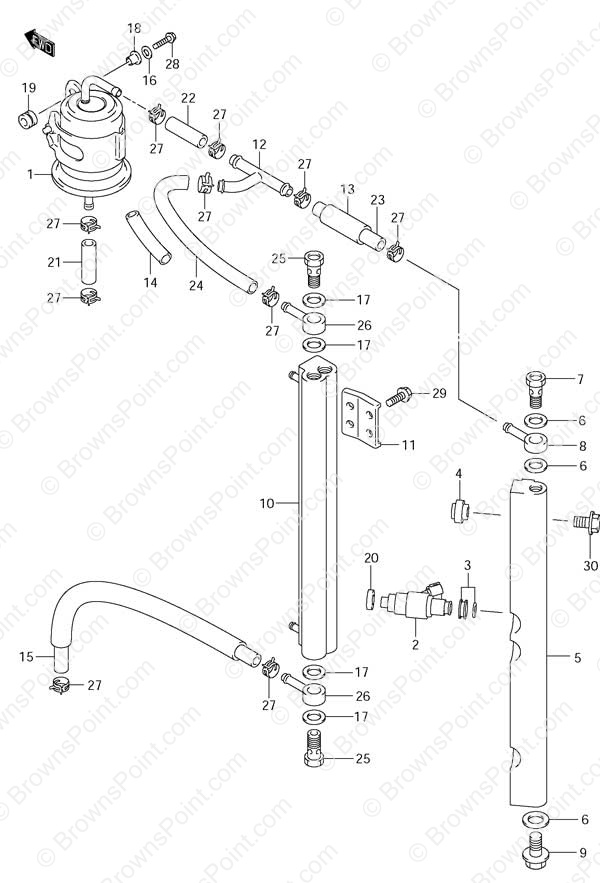

Fig. 10 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15440-90J00 H/P Fuel Filter
SKU: 15440-90J00 Weight: 0.840000 Brand: Price: $ 92.84 |
H/P Fuel Filter | 1 | $ 92.84 | ||
| 2 | 15710-65D00 Fuel Injector
SKU: 15710-65D00 Weight: 0.250000 Brand: Price: $ 305.07 |
Fuel Injector | 4 | $ 305.07 | ||
| 3 | 15716-65DT0 Grommet Set
SKU: 15716-65DT0 Weight: 0.060000 Brand: Price: $ 19.06 |
Grommet Set | 4 | $ 19.06 | ||
| 4 | 15735-58B00 Delivery Pipe Insulator
SKU: 15735-58B00 Weight: 0.250000 Brand: Price: $ 5.35 |
Delivery Pipe Insulator | 2 | $ 5.35 | ||
| 5 | 15750-90J00 Delivery Pipe (NLA)
SKU: 15750-90J00 Weight: 0.100000 Brand: Price: $ 86.52 |
Delivery Pipe (NLA) | 1 | $ 86.52 | ||
| 6 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 7 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 8 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 1 | $ 16.69 | ||
| 9 | 01550-12167 BOLT
SKU: 01550-12167 Weight: 0.100000 Brand: Price: $ 3.89 |
BOLT | 1 | $ 3.89 | ||
| 10 | 15770-90J02 Fuel Cooler
SKU: 15770-90J02 Weight: 0.250000 Brand: Price: $ 96.47 |
Fuel Cooler | 1 | $ 96.47 | ||
| 11 | 15775-90J00 Fuel Cooler Bracket (NLA)
SKU: 15775-90J00 Weight: 0.100000 Brand: Price: $ 3.45 |
Fuel Cooler Bracket (NLA) | 2 | $ 3.45 | ||
| 12 | 15830-99E00 3 Way Union
SKU: 15830-99E00 Weight: 0.060000 Brand: Price: $ 17.98 |
3 Way Union | 1 | $ 17.98 | ||
| 13 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->40 | |
| 14 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->70 | |
| 15 | 15680-90J01 Fuel Hose
SKU: 15680-90J01 Weight: 0.250000 Brand: Price: $ 31.89 |
Fuel Hose | 1 | $ 31.89 | Cooler to Separator | |
| 16 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 17 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 4 | $ 3.46 | ||
| 18 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 19 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 20 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 21 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Separartor to Filter L:600->50 | |
| 22 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Filter to 3 Way L:600->50 | |
| 23 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Delivery Pipe L:600->110 | |
| 24 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Cooler L:600->130 | |
| 25 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 2 | $ 9.81 | ||
| 26 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 2 | $ 16.69 | ||
| 27 | 09401-11414 Clip
SKU: 09401-11414 Weight: 0.060000 Brand: Price: $ 2.81 |
Clip | 10 | $ 2.81 | ||
| 28 | 01500-06257 BOLT
SKU: 01500-06257 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 29 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 30 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 2 | $ 3.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
