Suzuki DF 150 Parts Listings - 2017
S/N 15002F-710001 to 15002F-71XXXX
S/N 15002Z-710001 to 15002Z-71XXXX

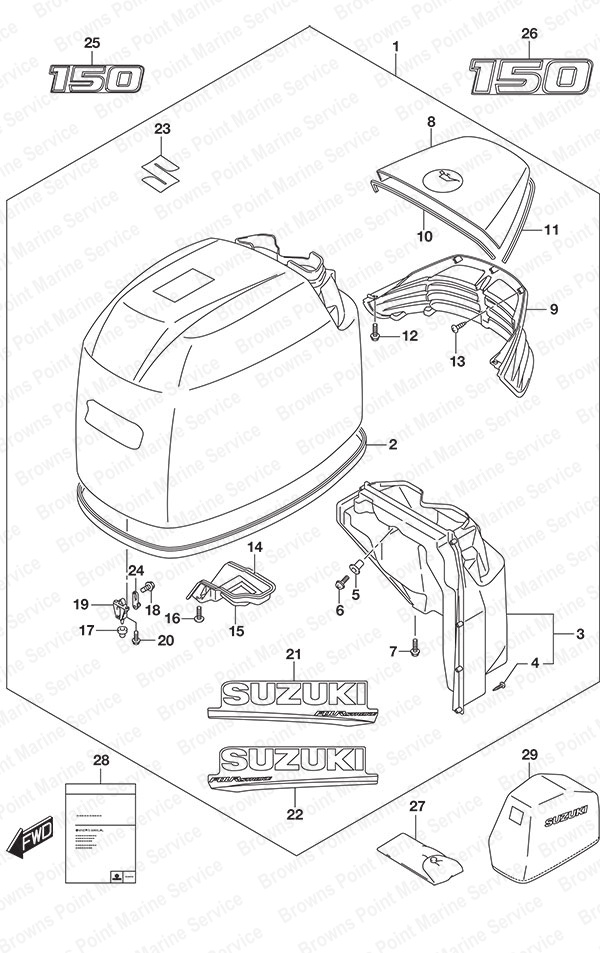

Fig. 420B - Engine Cover (White)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61403-96830-Y5S Engine Cover Set
SKU: 61403-96830-Y5S Weight: 40.000000 Brand: Price: $ 1,650.24 |
Engine Cover Set | 1 | $ 1,650.24 | ||
| 2 | 61112-96J20 Engine Cover Seal
SKU: 61112-96J20 Weight: 1.500000 Brand: Price: $ 100.32 |
Engine Cover Seal | 1 | $ 100.32 | ||
| 3 | 61430-96J10 Air Intake Inner Guide Assembly
SKU: 61430-96J10 Weight: 1.000000 Brand: Price: $ 147.99 |
Air Intake Inner Guide Assembly | 1 | $ 147.99 | ||
| 4 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 5 | 09159-05019 Nut
SKU: 09159-05019 Weight: 0.100000 Brand: Price: $ 7.26 |
Nut | 2 | $ 7.26 | ||
| 6 | 02142-05167 SCREW 5X16 CROS
SKU: 02142-05167 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 5X16 CROS | 2 | $ 1.38 | ||
| 7 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8 | 61431-96J21-Y5S Tilt Up Handle
SKU: 61431-96J21-Y5S Weight: 2.000000 Brand: Price: $ 245.36 |
Tilt Up Handle | 1 | $ 245.36 | ||
| 9 | 61432-96J11 Tilt Up Handle Louver
SKU: 61432-96J11 Weight: 1.000000 Brand: Price: $ 50.26 |
Tilt Up Handle Louver | 1 | $ 50.26 | ||
| 10 | 61438-96J10 Tilt Up Handle Seal No. 1
SKU: 61438-96J10 Weight: 0.100000 Brand: Price: $ 12.25 |
Tilt Up Handle Seal No. 1 | 1 | $ 12.25 | ||
| 11 | 61439-96J10 Tilt Up Handle Seal No. 2
SKU: 61439-96J10 Weight: 0.100000 Brand: Price: $ 12.25 |
Tilt Up Handle Seal No. 2 | 1 | $ 12.25 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 13 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 14 | 61475-96J10 Air Vent Guide
SKU: 61475-96J10 Weight: 0.100000 Brand: Price: $ 45.69 |
Air Vent Guide | 1 | $ 45.69 | ||
| 15 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 16 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 17 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 21 | 61443-96J60 Starboard Engine Cover Stripe
SKU: 61443-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Starboard Engine Cover Stripe | 1 | $ 32.15 | ||
| 22 | 61453-96J60 Port Engine Cover Stripe
SKU: 61453-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Port Engine Cover Stripe | 1 | $ 32.15 | ||
| 23 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 24 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 25 | 61422-96J80 Front Emblem Mark (150)
SKU: 61422-96J80 Weight: 0.250000 Brand: Price: $ 12.67 |
Front Emblem Mark (150) | 1 | $ 12.67 | ||
| 26 | 61435-96J90 Rear Emblem Mark (150)
SKU: 61435-96J90 Weight: 0.125000 Brand: Price: $ 12.83 |
Rear Emblem Mark (150) | 1 | $ 12.83 | ||
| 27 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 28 | 99011-96J90-03B Owners Manual DF150/DF175 - 2017
SKU: 99011-96J90-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150/DF175 - 2017 | 1 | $ 20.00 | ||
| 29 | 68110-96J00 Weather Cover
SKU: 68110-96J00 Weight: 2.000000 Brand: Price: $ 146.75 |
Weather Cover | 1 | $ 146.75 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
