Suzuki DF 150 Parts Listings - 2017
S/N 15002F-710001 to 15002F-71XXXX
S/N 15002Z-710001 to 15002Z-71XXXX

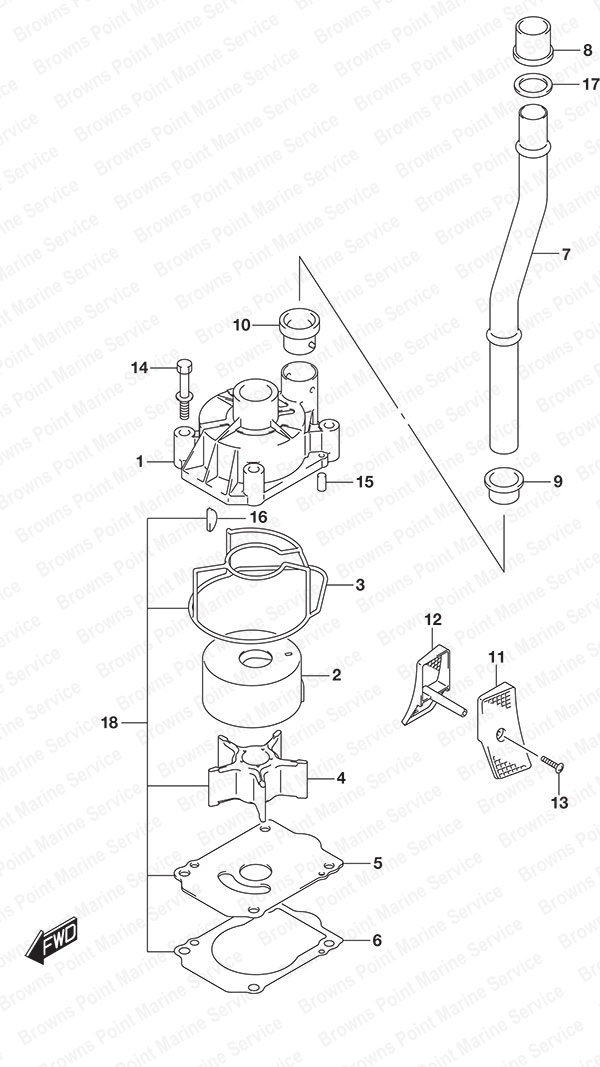

Fig. 160 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17411-96J01 Water Pump Case
SKU: 17411-96J01 Weight: 0.500000 Brand: Price: $ 74.58 |
Water Pump Case | 1 | $ 74.58 | ||
| 2 | 17413-96J01 Water Pump Case Sleeve
SKU: 17413-96J01 Weight: 0.250000 Brand: Price: $ 33.74 |
Water Pump Case Sleeve | 1 | $ 33.74 | ||
| 3 | 17416-96J01 Pump Case Seal
SKU: 17416-96J01 Weight: 0.060000 Brand: Price: $ 8.79 |
Pump Case Seal | 1 | $ 8.79 | ||
| 4 | 17461-90J01 Water Pump Impeller
SKU: 17461-90J01 Weight: 0.160000 Brand: Price: $ 67.58 |
Water Pump Impeller | 1 | $ 67.58 | ||
| 5 | 17471-93J02 Water Pump Plate
SKU: 17471-93J02 Weight: 0.340000 Brand: Price: $ 12.63 |
Water Pump Plate | 1 | $ 12.63 | ||
| 6 | 17472-93J00 Water Pump Plate Gasket
SKU: 17472-93J00 Weight: 0.060000 Brand: Price: $ 7.42 |
Water Pump Plate Gasket | 1 | $ 7.42 | ||
| 7-1 | 17560-96J01 Water Tube (L)
SKU: 17560-96J01 Weight: 0.250000 Brand: Price: $ 64.78 |
Water Tube (L) | 1 | $ 64.78 | w/Transon (L) | |
| 7-2 | 17561-96J11 Water Tube (X)
SKU: 17561-96J11 Weight: 0.350000 Brand: Price: $ 52.87 |
Water Tube (X) | 1 | $ 52.87 | w/Transon (X) | |
| 8 | 17562-93J01 Upper Water Tube Bushing
SKU: 17562-93J01 Weight: 0.125000 Brand: Price: $ 3.11 |
Upper Water Tube Bushing | 1 | $ 3.11 | ||
| 9 | 17563-93J01 Lower Water Tube Bushing
SKU: 17563-93J01 Weight: 0.060000 Brand: Price: $ 3.04 |
Lower Water Tube Bushing | 1 | $ 3.04 | ||
| 10 | 17564-93J01 Water Pump Case Bushing
SKU: 17564-93J01 Weight: 0.060000 Brand: Price: $ 3.23 |
Water Pump Case Bushing | 1 | $ 3.23 | ||
| 11-1 | 17631-93J20 Port Side Water Filter
SKU: 17631-93J20 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | Standard | |
| 11-2 | 17631-93J30 Port Side Water Filter
SKU: 17631-93J30 Weight: 0.060000 Brand: Price: $ 10.47 |
Port Side Water Filter | 1 | $ 10.47 | Optional | |
| 12-1 | 17632-93J20 Starboard Side Water Filter
SKU: 17632-93J20 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | Standard | |
| 12-2 | 17632-93J30 Starboard Side Water Filter
SKU: 17632-93J30 Weight: 0.060000 Brand: Price: $ 10.47 |
Starboard Side Water Filter | 1 | $ 10.47 | Optional | |
| 13-1 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 1 | $ 2.21 | w/Transon (L) | |
| 13-2 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 2 | $ 2.21 | w/Transon (X) | |
| 14 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 15 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 16 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
| 17 | 09168-20003 Gasket (20x27x2)
SKU: 09168-20003 Weight: 0.060000 Brand: Price: $ 2.56 |
Gasket (20x27x2) | 1 | $ 2.56 | W/Transom (X) | |
| 18 | 17400-96J04 Water Pump Repair Kit DF150/175/200A/200AP
SKU: 17400-96J04 Weight: 0.540000 Brand: Price: $ 74.30 |
Water Pump Repair Kit DF150/175/200A/200AP | 1 | $ 74.30 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
