Suzuki DF 70 Parts Listings 1998 to 2008

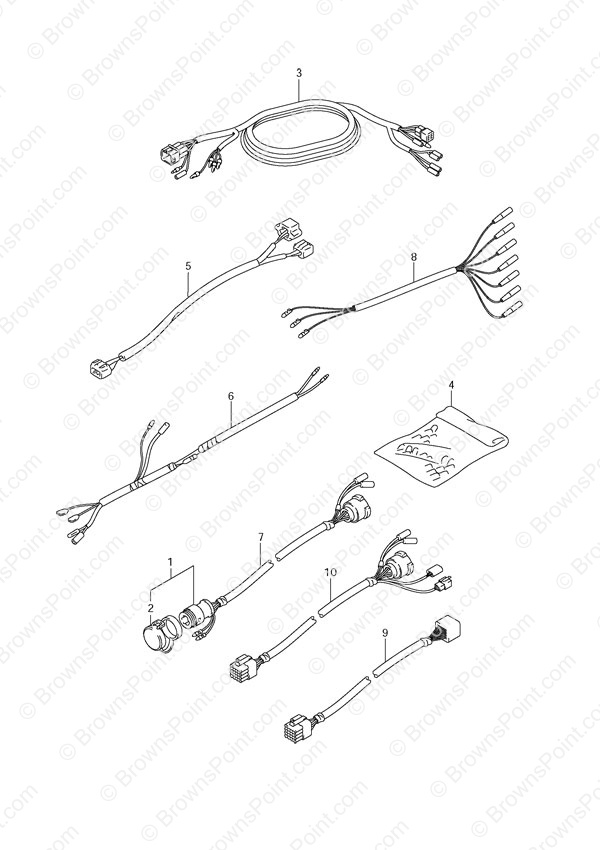

Fig. 63 - Opt: Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 36620-87D20 Wiring Harness Extension (NLA)
SKU: 36620-87D20 Weight: 2.940000 Brand: Price: $ 115.51 |
Wiring Harness Extension (NLA) | 1 | $ 115.51 | L:5000 1998 to 2004 | |
| 1-2 | 36620-95302 Wiring Harness Extension (NLA)
SKU: 36620-95302 Weight: 1.280000 Brand: Price: $ 83.56 |
Wiring Harness Extension (NLA) | 1 | $ 83.56 | L:2000 1998 to 2004 | |
| 2 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 | ||
| 3-1 | 36660-94400 Meter Extension Harness (NLA)
SKU: 36660-94400 Weight: 0.900000 Brand: Price: $ 87.36 |
Meter Extension Harness (NLA) | 1 | $ 87.36 | L:6000 1998 to 2004 | |
| 3-2 | 36660-94480 Trim Wire Harness (6 ft) (NLA)
SKU: 36660-94480 Weight: 5.000000 Brand: Price: $ 47.95 |
Trim Wire Harness (6 ft) (NLA) | 1 | $ 47.95 | L:2000 1998 to 2004 | |
| 4 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 5 | 36820-95560 Neutral Switch Lead (NLA)
SKU: 36820-95560 Weight: 0.100000 Brand: Price: $ 4.11 |
Neutral Switch Lead (NLA) | 1 | $ 4.11 | L:700 1998 to 2004 | |
| 6 | 34109-94500 Extension Lead (NLA)
SKU: 34109-94500 Weight: 2.000000 Brand: Price: $ 30.86 |
Extension Lead (NLA) | 1 | $ 30.86 | L:1600 1998 to 2004 | |
| 7 | 36620-92E00 21' Main Wire Harness (NLA)
SKU: 36620-92E00 Weight: 3.860000 Brand: Price: $ 165.49 |
21' Main Wire Harness (NLA) | 1 | $ 165.49 | 1998 to 2004 | |
| 8 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | Type: TH | |
| 9-1 | 36620-93J11 6' Wire Harness Extension
SKU: 36620-93J11 Weight: 1.720000 Brand: Price: $ 89.07 |
6' Wire Harness Extension | 1 | $ 89.07 | L:2000 2005 to 2008 | |
| 9-2 | 36620-93J42 HARNESS EXT 10'
SKU: 36620-93J42 Weight: 0.000000 Brand: Price: $ 120.18 |
HARNESS EXT 10' | 1 | $ 120.18 | L:3000 2005 to 2008 | |
| 10-1 | 36620-93J22 HARNESSADAPTER
SKU: 36620-93J22 Weight: 0.000000 Brand: Price: $ 161.93 |
HARNESSADAPTER | 1 | $ 161.93 | L:2000 2004 | |
| 10-2 | 36620-93J31 DF Wire Harness Adapter
SKU: 36620-93J31 Weight: 2.000000 Brand: Price: $ 103.94 |
DF Wire Harness Adapter | 1 | $ 103.94 | L:2000 2005 to 2008 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
