Suzuki DF 70 Parts Listings 2005 to 2008

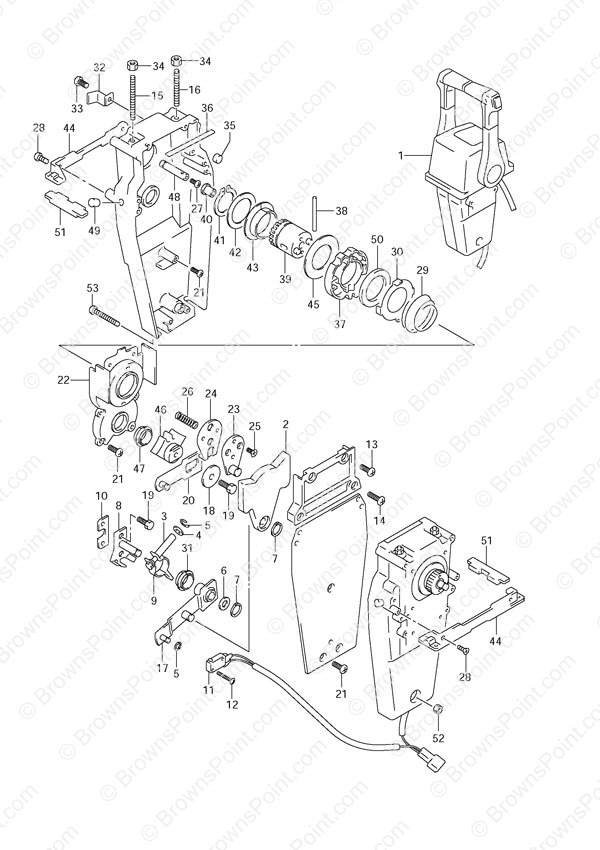

Fig. 58 - Opt: Top Mount Dual (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-88L12 Duel Binnacle Top Mount Control
SKU: 67200-88L12 Weight: 0.000000 Brand: Price: $ 963.99 |
Duel Binnacle Top Mount Control | 1 | $ 963.99 | ||
| 2 | 67222-92E00 Dual Plate
SKU: 67222-92E00 Weight: 0.100000 Brand: Price: $ 24.75 |
Dual Plate | 2 | $ 24.75 | ||
| 3 | 67223-92E00 Brake Adjust (NLA)
SKU: 67223-92E00 Weight: 0.100000 Brand: Price: $ 4.60 |
Brake Adjust (NLA) | 2 | $ 4.60 | ||
| 4 | 67288-92E00 Washer
SKU: 67288-92E00 Weight: 0.060000 Brand: Price: $ 2.88 |
Washer | 2 | $ 2.88 | ||
| 5 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 8 | $ 1.22 | ||
| 6 | 67288-92E10 Washer (NLA)
SKU: 67288-92E10 Weight: 0.100000 Brand: Price: $ 1.70 |
Washer (NLA) | 2 | $ 1.70 | ||
| 7 | 67291-92E00 Snap Ring (NLA)
SKU: 67291-92E00 Weight: 0.100000 Brand: Price: $ 2.15 |
Snap Ring (NLA) | 4 | $ 2.15 | ||
| 8 | 67221-92E00 Shift Assembly (NLA)
SKU: 67221-92E00 Weight: 0.100000 Brand: Price: $ 13.18 |
Shift Assembly (NLA) | 2 | $ 13.18 | ||
| 9 | 67224-92E00 Brake Arm Assembly (NLA)
SKU: 67224-92E00 Weight: 0.100000 Brand: Price: $ 9.41 |
Brake Arm Assembly (NLA) | 2 | $ 9.41 | ||
| 10 | 67294-92E00 Spacer (NLA)
SKU: 67294-92E00 Weight: 0.100000 Brand: Price: $ 7.23 |
Spacer (NLA) | 2 | $ 7.23 | ||
| 11 | 37721-92E11 Neutral Switch Assembly
SKU: 37721-92E11 Weight: 0.200000 Brand: Price: $ 50.87 |
Neutral Switch Assembly | 1 | $ 50.87 | ||
| 12 | 67296-92E11 Screw (3x15)
SKU: 67296-92E11 Weight: 0.100000 Brand: Price: $ 3.01 |
Screw (3x15) | 4 | $ 3.01 | ||
| 13 | 67296-88D10 Screw (5x16)
SKU: 67296-88D10 Weight: 0.060000 Brand: Price: $ 2.44 |
Screw (5x16) | 4 | $ 2.44 | ||
| 14 | 67296-92E20 Screw (5x25) (NLA)
SKU: 67296-92E20 Weight: 0.100000 Brand: Price: $ 2.35 |
Screw (5x25) (NLA) | 4 | $ 2.35 | ||
| 15 | 67226-92E00 Bolt (NLA)
SKU: 67226-92E00 Weight: 0.125000 Brand: Price: $ 6.64 |
Bolt (NLA) | 2 | $ 6.64 | ||
| 16 | 67226-92E10 Bolt (NLA)
SKU: 67226-92E10 Weight: 0.100000 Brand: Price: $ 4.52 |
Bolt (NLA) | 2 | $ 4.52 | ||
| 17 | 67240-92E00 Throttle Arm Assembly (NLA)
SKU: 67240-92E00 Weight: 0.100000 Brand: Price: $ 30.46 |
Throttle Arm Assembly (NLA) | 2 | $ 30.46 | ||
| 18 | 67228-92E00 Washer (NLA)
SKU: 67228-92E00 Weight: 0.100000 Brand: Price: $ 2.92 |
Washer (NLA) | 2 | $ 2.92 | ||
| 19 | 67286-92E00 Bolt (6x18) (NLA)
SKU: 67286-92E00 Weight: 0.100000 Brand: Price: $ 1.67 |
Bolt (6x18) (NLA) | 6 | $ 1.67 | ||
| 20 | 67230-92E00 Shift Arm Assembly (NLA)
SKU: 67230-92E00 Weight: 0.100000 Brand: Price: $ 9.39 |
Shift Arm Assembly (NLA) | 2 | $ 9.39 | ||
| 21 | 09125-05042 Screw (5x10)
SKU: 09125-05042 Weight: 0.060000 Brand: Price: $ 1.99 |
Screw (5x10) | 16 | $ 1.99 | ||
| 22 | 67234-92E00 Gear Case (NLA)
SKU: 67234-92E00 Weight: 0.100000 Brand: Price: $ 17.67 |
Gear Case (NLA) | 2 | $ 17.67 | ||
| 23 | 67245-92E00 Free Throttle Drum (NLA)
SKU: 67245-92E00 Weight: 0.100000 Brand: Price: $ 13.51 |
Free Throttle Drum (NLA) | 2 | $ 13.51 | ||
| 24 | 67227-92E00 Stopper (NLA)
SKU: 67227-92E00 Weight: 0.100000 Brand: Price: $ 7.23 |
Stopper (NLA) | 2 | $ 7.23 | ||
| 25 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 4 | $ 1.88 | ||
| 26 | 67225-92E00 Spring (NLA)
SKU: 67225-92E00 Weight: 0.100000 Brand: Price: $ 1.67 |
Spring (NLA) | 2 | $ 1.67 | ||
| 27 | 09125-04004 Screw (4x6)
SKU: 09125-04004 Weight: 0.100000 Brand: Price: $ 1.47 |
Screw (4x6) | 2 | $ 1.47 | ||
| 28 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 4 | $ 2.85 | ||
| 29 | 67233-92E00 Spring (NLA)
SKU: 67233-92E00 Weight: 0.100000 Brand: Price: $ 10.01 |
Spring (NLA) | 2 | $ 10.01 | ||
| 30 | 67235-92E00 Shift Lock Plate (NLA)
SKU: 67235-92E00 Weight: 0.100000 Brand: Price: $ 6.28 |
Shift Lock Plate (NLA) | 2 | $ 6.28 | ||
| 31 | 67232-95620 Bushing (NLA)
SKU: 67232-95620 Weight: 0.060000 Brand: Price: $ 4.06 |
Bushing (NLA) | 2 | $ 4.06 | ||
| 32 | 67296-92E00 Screw (NLA)
SKU: 67296-92E00 Weight: 0.100000 Brand: Price: $ 0.95 |
Screw (NLA) | 2 | $ 0.95 | ||
| 33 | 67296-88D10 Screw (5x16)
SKU: 67296-88D10 Weight: 0.060000 Brand: Price: $ 2.44 |
Screw (5x16) | 2 | $ 2.44 | ||
| 34 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 4 | $ 1.82 | ||
| 35 | 67236-92E00 Roller (NLA)
SKU: 67236-92E00 Weight: 0.100000 Brand: Price: $ 2.53 |
Roller (NLA) | 2 | $ 2.53 | ||
| 36 | 67237-92E01 Spring (NLA)
SKU: 67237-92E01 Weight: 0.100000 Brand: Price: $ 2.53 |
Spring (NLA) | 12 | $ 2.53 | ||
| 37 | 67238-92E00 Drive Gear (NLA)
SKU: 67238-92E00 Weight: 0.100000 Brand: Price: $ 15.91 |
Drive Gear (NLA) | 2 | $ 15.91 | ||
| 38 | 67239-92E00 Pin
SKU: 67239-92E00 Weight: 0.100000 Brand: Price: $ 16.98 |
Pin | 2 | $ 16.98 | ||
| 39 | 67246-92E00 Drive Shaft
SKU: 67246-92E00 Weight: 0.100000 Brand: Price: $ 41.00 |
Drive Shaft | 2 | $ 41.00 | ||
| 40 | 67252-92E00 Bushing (NLA)
SKU: 67252-92E00 Weight: 0.100000 Brand: Price: $ 4.50 |
Bushing (NLA) | 2 | $ 4.50 | ||
| 41 | 67291-92E10 Snap Ring (NLA)
SKU: 67291-92E10 Weight: 0.100000 Brand: Price: $ 6.10 |
Snap Ring (NLA) | 2 | $ 6.10 | ||
| 42 | 67253-92E10 Washer
SKU: 67253-92E10 Weight: 0.100000 Brand: Price: $ 3.95 |
Washer | 2 | $ 3.95 | ||
| 43 | 67252-92E10 Bushing (NLA)
SKU: 67252-92E10 Weight: 0.100000 Brand: Price: $ 3.93 |
Bushing (NLA) | 2 | $ 3.93 | ||
| 44 | 67274-92E00 Flange
SKU: 67274-92E00 Weight: 0.250000 Brand: Price: $ 34.99 |
Flange | 2 | $ 34.99 | ||
| 45 | 67253-95600 Washer (NLA)
SKU: 67253-95600 Weight: 0.100000 Brand: Price: $ 2.64 |
Washer (NLA) | 2 | $ 2.64 | ||
| 46 | 67231-92E00 Shift Gear
SKU: 67231-92E00 Weight: 0.100000 Brand: Price: $ 15.25 |
Shift Gear | 2 | $ 15.25 | ||
| 47 | 67232-95600 Bushing
SKU: 67232-95600 Weight: 0.100000 Brand: Price: $ 6.50 |
Bushing | 2 | $ 6.50 | ||
| 48 | 67241-92E00 Free Accel Rod (NLA)
SKU: 67241-92E00 Weight: 0.100000 Brand: Price: $ 9.44 |
Free Accel Rod (NLA) | 2 | $ 9.44 | ||
| 49 | 67243-92E00 Grommet (NLA)
SKU: 67243-92E00 Weight: 0.100000 Brand: Price: $ 3.25 |
Grommet (NLA) | 2 | $ 3.25 | ||
| 50 | 67239-92E10 Shift Pin Plate
SKU: 67239-92E10 Weight: 0.100000 Brand: Price: $ 8.95 |
Shift Pin Plate | 2 | $ 8.95 | ||
| 51 | 67272-92E10 Flange Seal (NLA)
SKU: 67272-92E10 Weight: 0.100000 Brand: Price: $ 1.67 |
Flange Seal (NLA) | 2 | $ 1.67 | ||
| 52 | 67287-92E10 Nut (NLA)
SKU: 67287-92E10 Weight: 0.100000 Brand: Price: $ 5.27 |
Nut (NLA) | 1 | $ 5.27 | ||
| 53 | 67296-92E80 Screw (NLA)
SKU: 67296-92E80 Weight: 0.100000 Brand: Price: $ 3.25 |
Screw (NLA) | 3 | $ 3.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
