Suzuki DF 70 Parts Listings 1998 to 2008

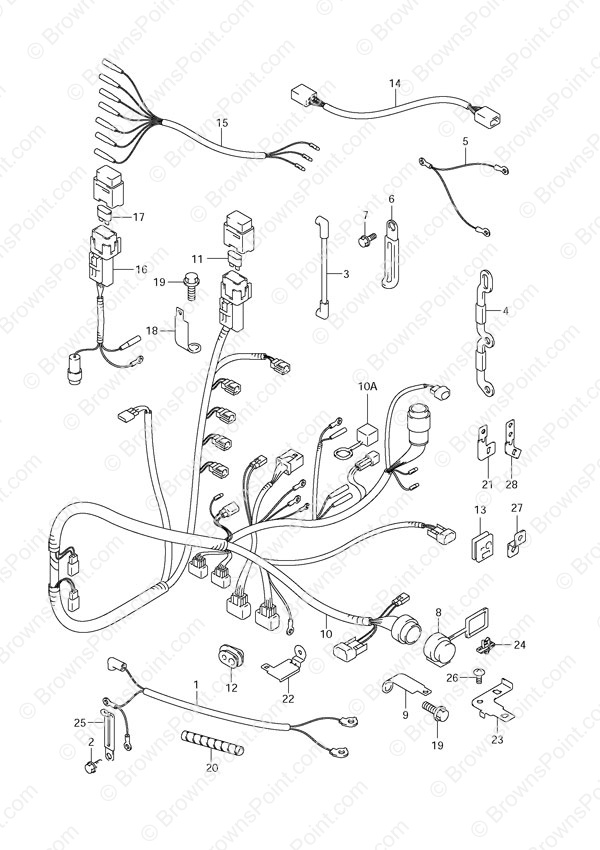

Fig. 33 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 33810-99E00 Starter Motor Cable (NLA)
SKU: 33810-99E00 Weight: 5.000000 Brand: Price: $ 113.02 |
Starter Motor Cable (NLA) | 1 | $ 113.02 | ||
| 1-2 | 33810-99E10 Starter Motor Cable
SKU: 33810-99E10 Weight: 5.000000 Brand: Price: $ 107.82 |
Starter Motor Cable | 1 | $ 107.82 | 2001 to 2008 | |
| 2 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 3 | 33820-99E00 Starter Sub Cable Assy (NLA)
SKU: 33820-99E00 Weight: 0.200000 Brand: Price: $ 12.76 |
Starter Sub Cable Assy (NLA) | 1 | $ 12.76 | ||
| 4 | 33831-99E01 PTT Relay Plate
SKU: 33831-99E01 Weight: 0.060000 Brand: Price: $ 8.78 |
PTT Relay Plate | 1 | $ 8.78 | 1998 to 2005 | |
| 5 | 33832-94601 Trim Cable Assembly (NLA)
SKU: 33832-94601 Weight: 0.100000 Brand: Price: $ 12.35 |
Trim Cable Assembly (NLA) | 1 | $ 12.35 | 1998 to 2005 | |
| 6-1 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | 1998 to 2007 | |
| 6-1 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | 1998 to 2007 | |
| 6-2 | 09404-08207 Clamp (L:97)
SKU: 09404-08207 Weight: 0.100000 Brand: Price: $ 2.37 |
Clamp (L:97) | 1 | $ 2.37 | ||
| 7-1 | 01550-06107 PLUG
SKU: 01550-06107 Weight: 0.125000 Brand: Price: $ 2.43 |
PLUG | 2 | $ 2.43 | ||
| 7-2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 2005 to 2008 | |
| 8 | 33634-99E00 Service Connector Cap
SKU: 33634-99E00 Weight: 0.250000 Brand: Price: $ 7.63 |
Service Connector Cap | 1 | $ 7.63 | 1998 to 2007 | |
| 9 | 36745-99E00 Connector Bracket (NLA)
SKU: 36745-99E00 Weight: 0.100000 Brand: Price: $ 1.94 |
Connector Bracket (NLA) | 1 | $ 1.94 | 1998 to 2005 | |
| 10-1 | 36610-99E80 Wiring Harness Assembly
SKU: 36610-99E80 Weight: 5.000000 Brand: Price: $ 450.64 |
Wiring Harness Assembly | 1 | $ 450.64 | 2000 Older | |
| 10-2 | 36610-99E50 Wiring Harness Assembly
SKU: 36610-99E50 Weight: 5.000000 Brand: Price: $ 584.69 |
Wiring Harness Assembly | 1 | $ 584.69 | 2001 to 2002 | |
| 10-3 | 36610-99EA0 Wiring Harness Assembly
SKU: 36610-99EA0 Weight: 5.000000 Brand: Price: $ 486.72 |
Wiring Harness Assembly | 1 | $ 486.72 | 2003 | |
| 10-4 | 36610-99ED0 Wiring Harness Assembly
SKU: 36610-99ED0 Weight: 5.000000 Brand: Price: $ 624.97 |
Wiring Harness Assembly | 1 | $ 624.97 | 2004 | |
| 10-5 | 36610-99EF0 Wiring Harness Assembly
SKU: 36610-99EF0 Weight: 5.000000 Brand: Price: $ 619.35 |
Wiring Harness Assembly | 1 | $ 619.35 | 2005 | |
| 10-6 | 36610-99EH0 Wiring Harness Assembly
SKU: 36610-99EH0 Weight: 5.000000 Brand: Price: $ 546.41 |
Wiring Harness Assembly | 1 | $ 546.41 | 2006 to 2007 | |
| 10-7 | 36610-99EM0 Wiring Harness Assembly
SKU: 36610-99EM0 Weight: 5.000000 Brand: Price: $ 600.93 |
Wiring Harness Assembly | 1 | $ 600.93 | 2008 | |
| 10A | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | 2008 | |
| 11-1 | 09481-15101 15 Amp Fuse
SKU: 09481-15101 Weight: 0.060000 Brand: Price: $ 2.20 |
15 Amp Fuse | 1 | $ 2.20 | ||
| 11-2 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | 2001 to 2008 | |
| 12-1 | 36656-87D11 Cable Grommet
SKU: 36656-87D11 Weight: 0.100000 Brand: Price: $ 4.56 |
Cable Grommet | 1 | $ 4.56 | ||
| 12-2 | 36656-99E10 Cable Grommet
SKU: 36656-99E10 Weight: 0.100000 Brand: Price: $ 6.41 |
Cable Grommet | 1 | $ 6.41 | 2004 to 2008 | |
| 13-1 | 36658-99E01 Cable Grommet
SKU: 36658-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Cable Grommet | 1 | $ 6.09 | ||
| 13-2 | 36658-99E10 Cable Grommet
SKU: 36658-99E10 Weight: 0.060000 Brand: Price: $ 7.59 |
Cable Grommet | 1 | $ 7.59 | Type: TH | |
| 13-3 | 36658-99E10 Cable Grommet
SKU: 36658-99E10 Weight: 0.060000 Brand: Price: $ 7.59 |
Cable Grommet | 1 | $ 7.59 | 2005 to 2008 | |
| 14 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | 2004 Older | |
| 15 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | 2004 Older | |
| 16 | 36740-99E00 Fuse Case Assembly
SKU: 36740-99E00 Weight: 1.000000 Brand: Price: $ 33.17 |
Fuse Case Assembly | 1 | $ 33.17 | 2000 Older | |
| 17 | 09481-30101 30 Amp Fuse
SKU: 09481-30101 Weight: 0.060000 Brand: Price: $ 2.27 |
30 Amp Fuse | 1 | $ 2.27 | 2000 Older | |
| 18 | 36745-99E00 Connector Bracket (NLA)
SKU: 36745-99E00 Weight: 0.100000 Brand: Price: $ 1.94 |
Connector Bracket (NLA) | 1 | $ 1.94 | 2000 Older | |
| 19-1 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 2000 Older | |
| 19-2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | 2001 to 2007 | |
| 20 | 33834-99E10 Hose Protector (NLA)
SKU: 33834-99E10 Weight: 0.100000 Brand: Price: $ 1.01 |
Hose Protector (NLA) | 1 | $ 1.01 | ||
| 21 | 36617-90J00 Joint Connector Bracket
SKU: 36617-90J00 Weight: 0.060000 Brand: Price: $ 5.38 |
Joint Connector Bracket | 1 | $ 5.38 | 2004 to 2007 | |
| 22 | 36616-99E00 Connector Holder (NLA)
SKU: 36616-99E00 Weight: 0.100000 Brand: Price: $ 4.59 |
Connector Holder (NLA) | 1 | $ 4.59 | 2005 to 2008 | |
| 23 | 36745-99E10 Connector Bracket (NLA)
SKU: 36745-99E10 Weight: 0.100000 Brand: Price: $ 3.66 |
Connector Bracket (NLA) | 1 | $ 3.66 | 2006 to 2008 | |
| 25 | 09404-08207 Clamp (L:97)
SKU: 09404-08207 Weight: 0.100000 Brand: Price: $ 2.37 |
Clamp (L:97) | 1 | $ 2.37 | S/N 682728 Newer | |
| 26 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | 2008 | |
| 27 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | 2008 |
