Suzuki DF 70 Parts Listings 1998 to 2000

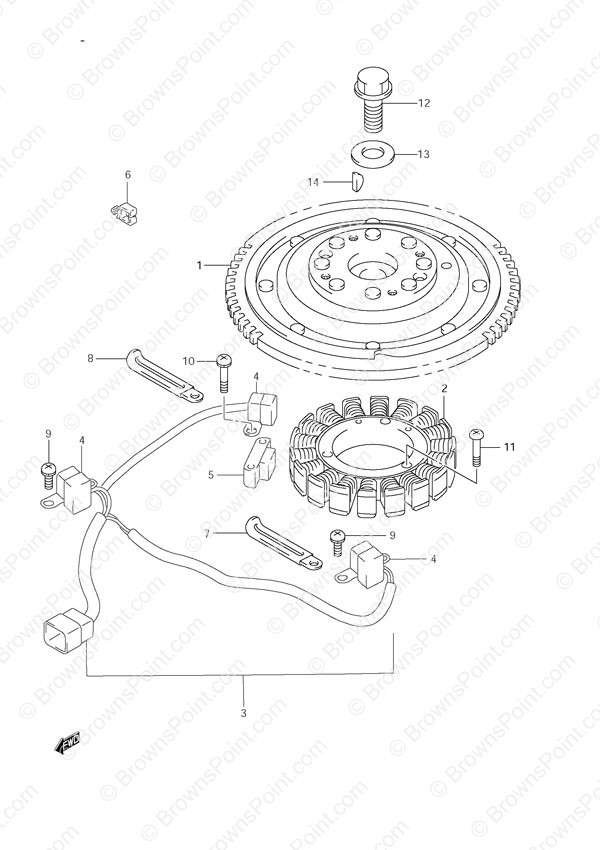

Fig. 29 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-99E00 Flywheel (NLA)
SKU: 32102-99E00 Weight: 11.000000 Brand: Price: $ 919.41 |
Flywheel (NLA) | 1 | $ 919.41 | ||
| 2 | 32120-99E00 Battery Charge Coil (NLA)
SKU: 32120-99E00 Weight: 0.100000 Brand: Price: $ 491.19 |
Battery Charge Coil (NLA) | 1 | $ 491.19 | ||
| 3 | 32150-99E00 CKP/CMP Sensor Assembly (NLA)
SKU: 32150-99E00 Weight: 0.100000 Brand: Price: $ 316.37 |
CKP/CMP Sensor Assembly (NLA) | 1 | $ 316.37 | ||
| 4 | 32160-99E00 Ignition Timing Coil
SKU: 32160-99E00 Weight: 0.100000 Brand: Price: $ 145.83 |
Ignition Timing Coil | 3 | $ 145.83 | ||
| 5 | 32154-99E00 Spacer
SKU: 32154-99E00 Weight: 0.100000 Brand: Price: $ 15.72 |
Spacer | 1 | $ 15.72 | ||
| 6 | 09403-08328 Clamp (NLA)
SKU: 09403-08328 Weight: 0.100000 Brand: Price: $ 1.74 |
Clamp (NLA) | 2 | $ 1.74 | ||
| 7 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 8 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 9 | 02112-36127 SCREW
SKU: 02112-36127 Weight: 0.100000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 10 | 02112-36303 02112-3630B
SKU: 02112-36303 Weight: 0.060000 Brand: Price: $ 1.93 |
02112-3630B | 2 | $ 1.93 | ||
| 11 | 02112-0630A SCREW
SKU: 02112-0630A Weight: 0.100000 Brand: Price: $ 1.78 |
SCREW | 3 | $ 1.78 | ||
| 12 | 09103-16001 Flywheel Bolt (16x40)
SKU: 09103-16001 Weight: 0.250000 Brand: Price: $ 7.63 |
Flywheel Bolt (16x40) | 1 | $ 7.63 | ||
| 13 | 09160-16046 Washer (16.5x36x4.5) (NLA)
SKU: 09160-16046 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (16.5x36x4.5) (NLA) | 1 | $ 4.13 | ||
| 14 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
