Suzuki DF 70 Parts Listings 2008

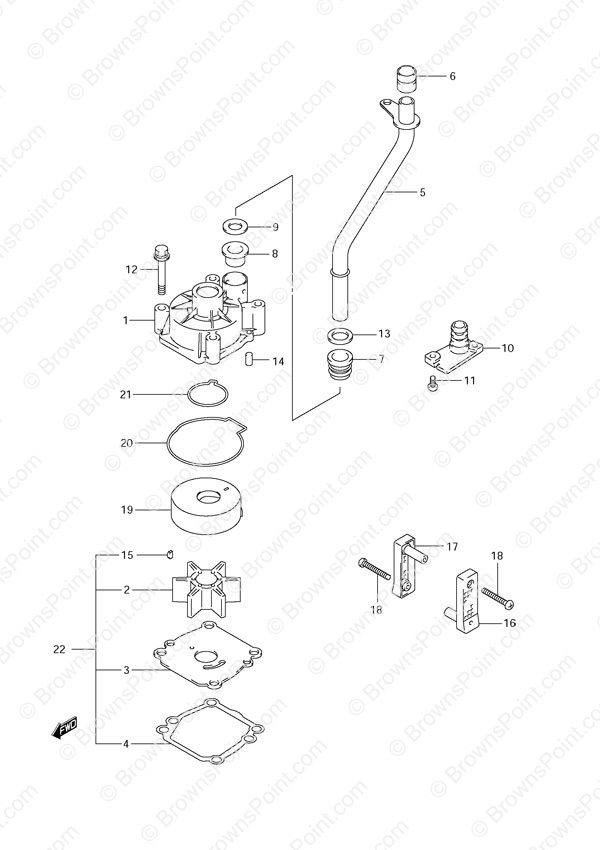

Fig. 20A - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-99E00 Water Pump Case
SKU: 17410-99E00 Weight: 0.500000 Brand: Price: $ 77.06 |
Water Pump Case | 1 | $ 77.06 | ||
| 2 | 17461-87E12 Water Pump Impeller
SKU: 17461-87E12 Weight: 0.120000 Brand: Price: $ 53.08 |
Water Pump Impeller | 1 | $ 53.08 | ||
| 3 | 17471-99E00 Water Pump Plate
SKU: 17471-99E00 Weight: 0.187500 Brand: Price: $ 12.72 |
Water Pump Plate | 1 | $ 12.72 | ||
| 4 | 17472-87E10 Water Pump Plate Gasket
SKU: 17472-87E10 Weight: 0.060000 Brand: Price: $ 6.07 |
Water Pump Plate Gasket | 1 | $ 6.07 | ||
| 5 | 17560-99E01 Water Tube (L)
SKU: 17560-99E01 Weight: 0.100000 Brand: Price: $ 54.15 |
Water Tube (L) | 1 | $ 54.15 | ||
| 6 | 17562-87D00 Water Tube Bushing
SKU: 17562-87D00 Weight: 0.060000 Brand: Price: $ 9.10 |
Water Tube Bushing | 1 | $ 9.10 | Upper | |
| 7 | 17563-87D01 Water Tube Bushing
SKU: 17563-87D01 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Tube Bushing | 1 | $ 7.01 | Lower | |
| 8 | 17564-87D00 Water Pump Case Bushing
SKU: 17564-87D00 Weight: 0.060000 Brand: Price: $ 11.80 |
Water Pump Case Bushing | 1 | $ 11.80 | ||
| 9 | 17612-87D01 Water Tube Spacer
SKU: 17612-87D01 Weight: 0.060000 Brand: Price: $ 2.30 |
Water Tube Spacer | 1 | $ 2.30 | ||
| 10 | 17635-90J00 Sub Water Tube Plug
SKU: 17635-90J00 Weight: 0.060000 Brand: Price: $ 5.43 |
Sub Water Tube Plug | 1 | $ 5.43 | ||
| 11 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 12 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 4 | $ 2.90 | ||
| 13 | 09161-16008 Washer (15.8x26x1)
SKU: 09161-16008 Weight: 0.060000 Brand: Price: $ 2.32 |
Washer (15.8x26x1) | 1 | $ 2.32 | ||
| 14 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 15 | 09420-04009 Water Pump Key
SKU: 09420-04009 Weight: 0.060000 Brand: Price: $ 5.94 |
Water Pump Key | 1 | $ 5.94 | ||
| 16 | 17631-90J00 Port Side Water Filter
SKU: 17631-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | ||
| 17 | 17632-90J00 Starboard Side Water Filter
SKU: 17632-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | ||
| 18 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 2 | $ 2.21 | ||
| 19 | 17413-99E11 Water Pump Case Sleeve
SKU: 17413-99E11 Weight: 0.160000 Brand: Price: $ 34.88 |
Water Pump Case Sleeve | 1 | $ 34.88 | ||
| 20 | 17416-99E00 Water Pump Seal Ring No. 1
SKU: 17416-99E00 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Pump Seal Ring No. 1 | 1 | $ 7.01 | ||
| 21 | 17417-99E00 Water Pump Seal Ring No. 2
SKU: 17417-99E00 Weight: 0.060000 Brand: Price: $ 6.66 |
Water Pump Seal Ring No. 2 | 1 | $ 6.66 | ||
| 22 | 17400-99E01 Water Pump Repair Kit DF60/70
SKU: 17400-99E01 Weight: 0.340000 Brand: Price: $ 70.96 |
Water Pump Repair Kit DF60/70 | 1 | $ 70.96 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
