Suzuki DF 70 Parts Listings 2007 to 2008

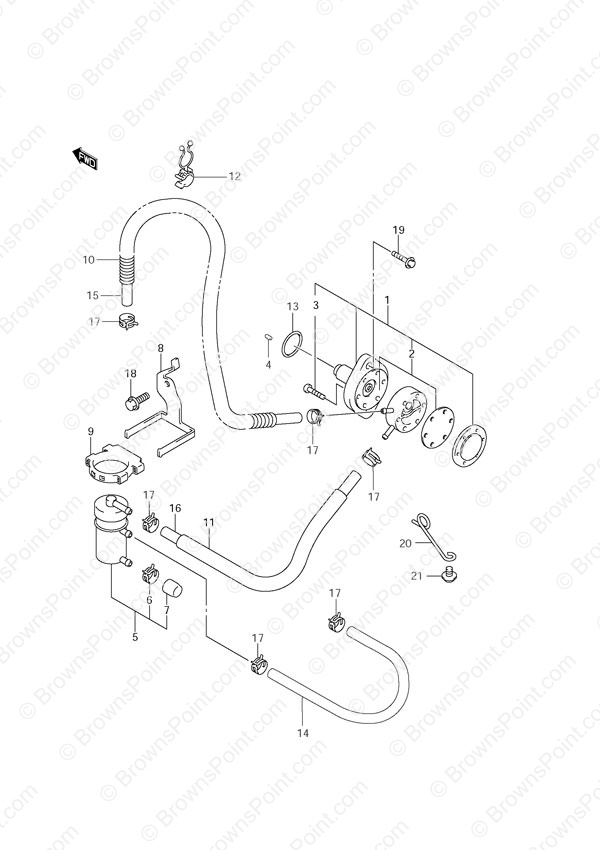

Fig. 19A - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-99E11 Fuel Pump Assembly
SKU: 15100-99E11 Weight: 0.560000 Brand: Price: $ 184.19 |
Fuel Pump Assembly | 1 | $ 184.19 | ||
| 2 | 15170-99E1V Fuel Pump Diaphragm Set
SKU: 15170-99E1V Weight: 0.060000 Brand: Price: $ 69.47 |
Fuel Pump Diaphragm Set | 1 | $ 69.47 | ||
| 3 | 15251-93E01 Screw
SKU: 15251-93E01 Weight: 0.060000 Brand: Price: $ 2.53 |
Screw | 6 | $ 2.53 | ||
| 4 | 15131-99E00 Fuel Pump Rod
SKU: 15131-99E00 Weight: 0.060000 Brand: Price: $ 4.77 |
Fuel Pump Rod | 1 | $ 4.77 | ||
| 5 | 15410-87J30 Fuel Filter
SKU: 15410-87J30 Weight: 0.200000 Brand: Price: $ 16.22 |
Fuel Filter | 1 | $ 16.22 | ||
| 6 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 7 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 8 | 15421-99E20 Fuel Filter Bracket (NLA)
SKU: 15421-99E20 Weight: 0.100000 Brand: Price: $ 6.50 |
Fuel Filter Bracket (NLA) | 1 | $ 6.50 | ||
| 9 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
| 10 | 16919-99E10 Fuel Hose Protector (L:440)
SKU: 16919-99E10 Weight: 0.200000 Brand: Price: $ 3.60 |
Fuel Hose Protector (L:440) | 1 | $ 3.60 | ||
| 11 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | ||
| 12 | 34980-60B00 Fuel Hose Clamp (NLA)
SKU: 34980-60B00 Weight: 0.100000 Brand: Price: $ 1.70 |
Fuel Hose Clamp (NLA) | 2 | $ 1.70 | ||
| 13 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 14 | 15191-99E00 Fuel Hose
SKU: 15191-99E00 Weight: 0.060000 Brand: Price: $ 6.74 |
Fuel Hose | 1 | $ 6.74 | Connector to Filter | |
| 15 | 09355-70125-00B Fuel Hose (L:2000)
SKU: 09355-70125-00B Weight: 0.500000 Brand: Price: $ 36.71 |
Fuel Hose (L:2000) | 1 | $ 36.71 | Pump to Separator L:2000->630 | |
| 16 | 09355-70125-00B Fuel Hose (L:2000)
SKU: 09355-70125-00B Weight: 0.500000 Brand: Price: $ 36.71 |
Fuel Hose (L:2000) | 1 | $ 36.71 | Filter to Pump L:2000->700 | |
| 17 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 6 | $ 2.09 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 19 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 20 | 65793-99E00 Fuel Hose Holder (NLA)
SKU: 65793-99E00 Weight: 0.100000 Brand: Price: $ 4.18 |
Fuel Hose Holder (NLA) | 1 | $ 4.18 | ||
| 21 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
