Suzuki DF 70 Parts Listings
S/N 972015 & Older

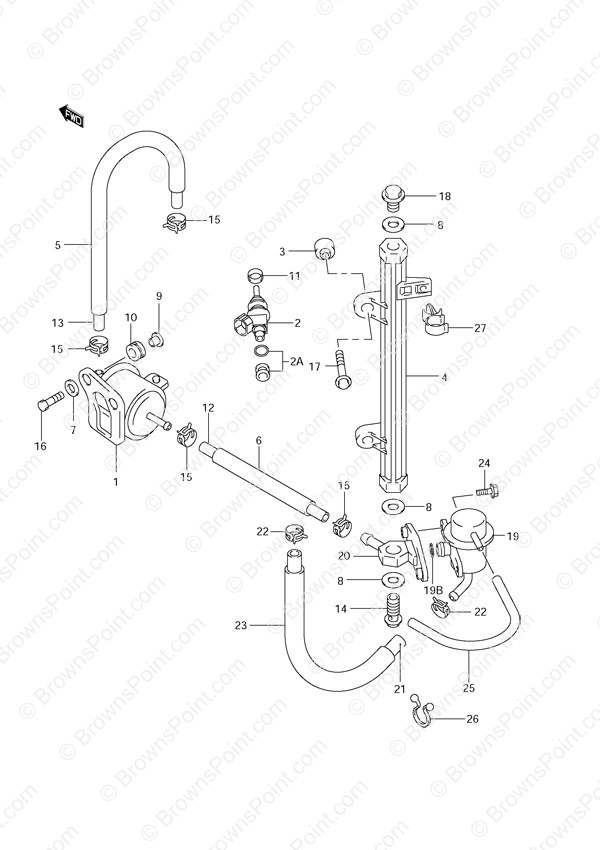

Fig. 17 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15440-99E01 H/P Fuel Filter
SKU: 15440-99E01 Weight: 0.900000 Brand: Price: $ 83.14 |
H/P Fuel Filter | 1 | $ 83.14 | ||
| 2 | 15710-99E00 Fuel Injector (NLA)
SKU: 15710-99E00 Weight: 0.250000 Brand: Price: $ 304.53 |
Fuel Injector (NLA) | 4 | $ 304.53 | ||
| 2A | 15716-58BT0 Grommet Set
SKU: 15716-58BT0 Weight: 0.060000 Brand: Price: $ 19.71 |
Grommet Set | 4 | $ 19.71 | ||
| 3 | 15735-58B00 Delivery Pipe Insulator
SKU: 15735-58B00 Weight: 0.250000 Brand: Price: $ 5.35 |
Delivery Pipe Insulator | 2 | $ 5.35 | ||
| 4 | 15751-99E00 Delivery Pipe (NLA)
SKU: 15751-99E00 Weight: 0.100000 Brand: Price: $ 105.73 |
Delivery Pipe (NLA) | 1 | $ 105.73 | ||
| 5 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | ||
| 6 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->120 | |
| 7 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 8 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 9 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 10 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 11 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 12 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Filter to Pipe L:600->200 | |
| 13 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Pump to Filter L:600->520 | |
| 14 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 15 | 09401-11414 Clip
SKU: 09401-11414 Weight: 0.060000 Brand: Price: $ 2.81 |
Clip | 4 | $ 2.81 | ||
| 16 | 01500-06257 BOLT
SKU: 01500-06257 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 17 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 2 | $ 3.48 | ||
| 18 | 01550-12167 BOLT
SKU: 01550-12167 Weight: 0.100000 Brand: Price: $ 3.89 |
BOLT | 1 | $ 3.89 | ||
| 19 | 15610-51E11 Fuel Pressure Regulator
SKU: 15610-51E11 Weight: 0.280000 Brand: Price: $ 189.71 |
Fuel Pressure Regulator | 1 | $ 189.71 | ||
| 19B | 15710-51E10 O-Ring
SKU: 15710-51E10 Weight: 0.060000 Brand: Price: $ 5.38 |
O-Ring | 1 | $ 5.38 | ||
| 20 | 15765-99E00 Regulator Bracket (NLA)
SKU: 15765-99E00 Weight: 0.100000 Brand: Price: $ 71.89 |
Regulator Bracket (NLA) | 1 | $ 71.89 | ||
| 21 | 09356-58127-600 Hose (5.8x12.2x600)
SKU: 09356-58127-600 Weight: 0.200000 Brand: Price: $ 22.84 |
Hose (5.8x12.2x600) | 1 | $ 22.84 | Press Regulator to Vapor Separator L:600->350 | |
| 22 | 09401-10409 Clip
SKU: 09401-10409 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 2 | $ 2.27 | ||
| 23 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->280 | |
| 24 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 25 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->200 | |
| 26 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 27 | 09403-07308 Clamp
SKU: 09403-07308 Weight: 0.060000 Brand: Price: $ 1.79 |
Clamp | 1 | $ 1.79 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
