Suzuki DF 70 Parts Listings
S/N 972015 & Older

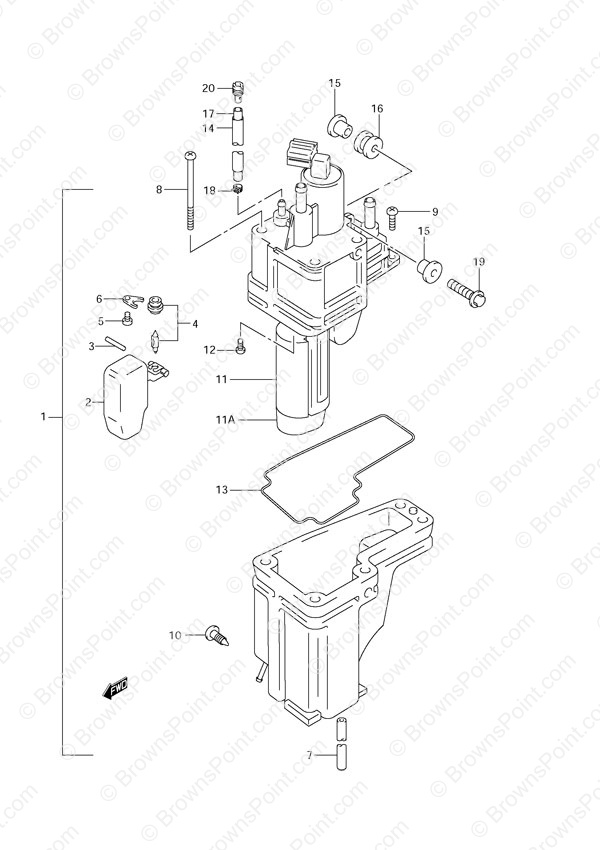

Fig. 14 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-99E00 Fuel Vapor Separator Assembly (NLA)
SKU: 15600-99E00 Weight: 3.360000 Brand: Price: $ 776.99 |
Fuel Vapor Separator Assembly (NLA) | 1 | $ 776.99 | ||
| 2 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 68.42 |
Float | 1 | $ 68.42 | ||
| 3 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 4 | 13370-99E00 Needle Valve Assembly
SKU: 13370-99E00 Weight: 0.060000 Brand: Price: $ 48.97 |
Needle Valve Assembly | 1 | $ 48.97 | ||
| 5 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 6 | 13373-39110 Needle Valve Plate
SKU: 13373-39110 Weight: 0.062500 Brand: Price: $ 7.01 |
Needle Valve Plate | 1 | $ 7.01 | ||
| 7 | 15644-99E00 Drain Hose (NLA)
SKU: 15644-99E00 Weight: 0.100000 Brand: Price: $ 1.73 |
Drain Hose (NLA) | 1 | $ 1.73 | ||
| 8 | 15627-99E00 Screw (L:70)
SKU: 15627-99E00 Weight: 0.100000 Brand: Price: $ 5.30 |
Screw (L:70) | 3 | $ 5.30 | ||
| 9 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 2 | $ 2.42 | ||
| 10 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | ||
| 11 | 15200-87J10 Fuel Pump Assembly
SKU: 15200-87J10 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 11A | 15641-99E01 Fuel Pump Filter
SKU: 15641-99E01 Weight: 0.060000 Brand: Price: $ 26.63 |
Fuel Pump Filter | 1 | $ 26.63 | ||
| 12 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 13 | 15626-99E00 O-Ring
SKU: 15626-99E00 Weight: 0.060000 Brand: Price: $ 12.79 |
O-Ring | 1 | $ 12.79 | ||
| 14 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->390 | |
| 15 | 09169-06067 Washer (6.8x19x1.6)
SKU: 09169-06067 Weight: 0.060000 Brand: Price: $ 3.40 |
Washer (6.8x19x1.6) | 6 | $ 3.40 | ||
| 16 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 3 | $ 3.31 | ||
| 17 | 09355-35755-600 Hose (L:600)
SKU: 09355-35755-600 Weight: 0.100000 Brand: Price: $ 7.94 |
Hose (L:600) | 1 | $ 7.94 | L:600->450 | |
| 18 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 | ||
| 19 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 3 | $ 1.49 | ||
| 20 | 09493-20020 Pilot Air Jet
SKU: 09493-20020 Weight: 0.060000 Brand: Price: $ 15.14 |
Pilot Air Jet | 2 | $ 15.14 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
