Suzuki DF 70 Parts Listingss 1998 to 2008

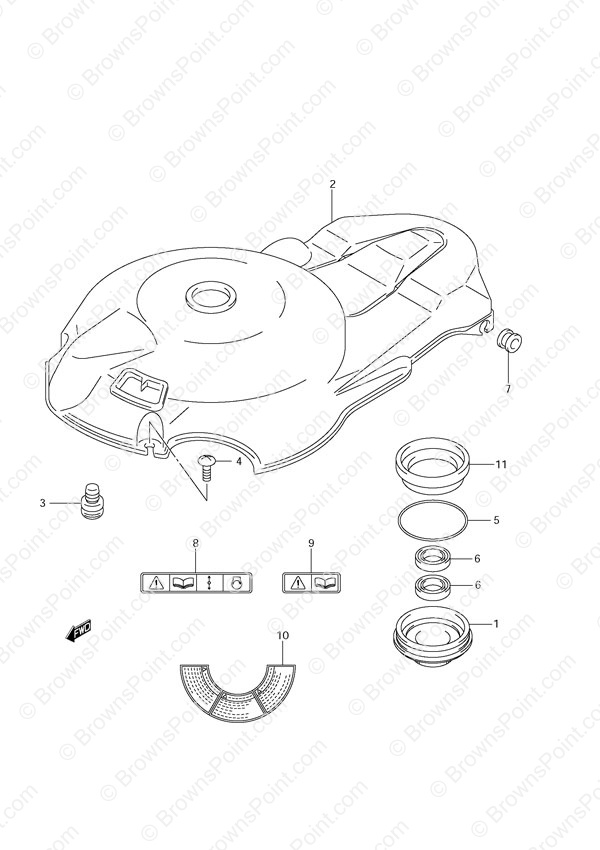

Fig. 3 - Under Oil Seal Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11431-99E02 Under Oil Seal Housing
SKU: 11431-99E02 Weight: 0.100000 Brand: Price: $ 31.10 |
Under Oil Seal Housing | 1 | $ 31.10 | ||
| 2 | 11510-99E00 Ring Gear Cover
SKU: 11510-99E00 Weight: 4.000000 Brand: Price: $ 51.42 |
Ring Gear Cover | 1 | $ 51.42 | ||
| 3 | 11512-99E01 Ring Gear Cover Cushion
SKU: 11512-99E01 Weight: 0.060000 Brand: Price: $ 3.62 |
Ring Gear Cover Cushion | 1 | $ 3.62 | ||
| 4 | 09125-06111 Screw (6x18)
SKU: 09125-06111 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x18) | 1 | $ 2.12 | ||
| 5 | 09280-64003 O-Ring
SKU: 09280-64003 Weight: 0.060000 Brand: Price: $ 5.74 |
O-Ring | 1 | $ 5.74 | ||
| 6 | 09282-22007 Oil Seal (22x36x6)
SKU: 09282-22007 Weight: 0.060000 Brand: Price: $ 13.97 |
Oil Seal (22x36x6) | 2 | $ 13.97 | ||
| 7 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 2 | $ 1.92 | ||
| 8 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 9 | 69712-93E10 Label S.I.G.P
SKU: 69712-93E10 Weight: 0.100000 Brand: Price: $ 4.03 |
Label S.I.G.P | 1 | $ 4.03 | 1999 Older | |
| 10 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 7.74 |
LABEL,RECOIL,ST | 1 | $ 7.74 | ||
| 11 | 09283-52004 Oil Seal (52x70x10)
SKU: 09283-52004 Weight: 0.060000 Brand: Price: $ 17.30 |
Oil Seal (52x70x10) | 1 | $ 17.30 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
