Suzuki DF 6 Parts Listings - 2016
S/N 00602F-610001 to 00602F-61XXXX

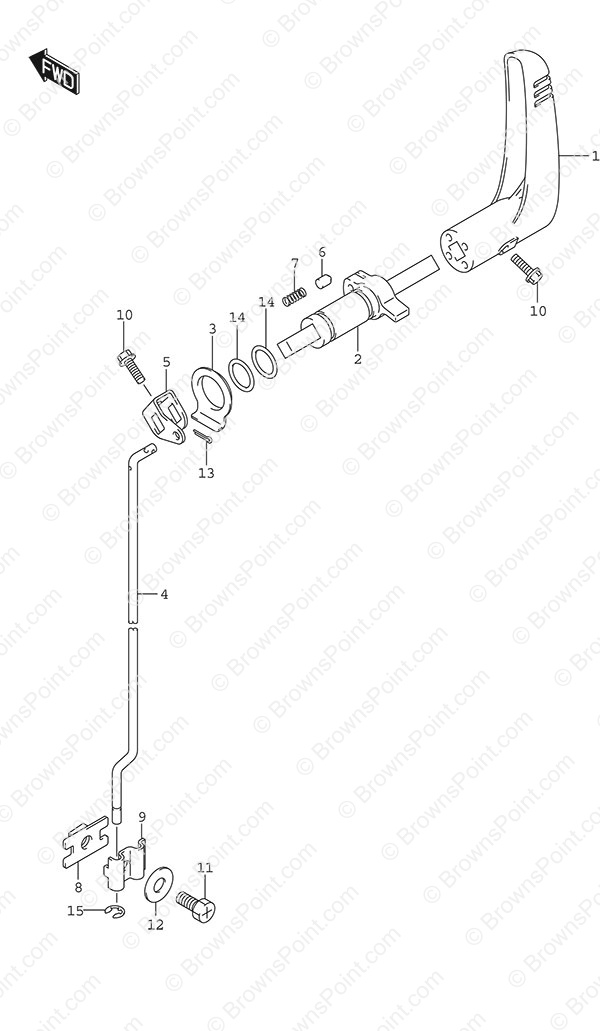

Fig. 208 - Clutch Lever
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-91JL0 Clutch Lever
SKU: 21110-91JL0 Weight: 0.250000 Brand: Price: $ 33.83 |
Clutch Lever | 1 | $ 33.83 | ||
| 2 | 21120-91J02 Clutch Notch Plate
SKU: 21120-91J02 Weight: 0.120000 Brand: Price: $ 30.10 |
Clutch Notch Plate | 1 | $ 30.10 | ||
| 3 | 21216-91J00 Clutch Shaft Spacer
SKU: 21216-91J00 Weight: 0.060000 Brand: Price: $ 5.08 |
Clutch Shaft Spacer | 1 | $ 5.08 | ||
| 4 | 23111-91J01 Clutch Rod
SKU: 23111-91J01 Weight: 0.100000 Brand: Price: $ 18.67 |
Clutch Rod | 1 | $ 18.67 | ||
| 5 | 23210-91J00 Clutch Rod Arm
SKU: 23210-91J00 Weight: 0.060000 Brand: Price: $ 7.33 |
Clutch Rod Arm | 1 | $ 7.33 | ||
| 6 | 23212-91J00 Clutch Notch Pin
SKU: 23212-91J00 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Notch Pin | 1 | $ 2.62 | ||
| 7 | 23213-91J00 Clutch Notch Spring
SKU: 23213-91J00 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Notch Spring | 1 | $ 2.62 | ||
| 8 | 23310-91J00 Clutch Rod Connector
SKU: 23310-91J00 Weight: 0.100000 Brand: Price: $ 5.17 |
Clutch Rod Connector | 1 | $ 5.17 | ||
| 9 | 23321-91J00 Clutch Rod Connector
SKU: 23321-91J00 Weight: 0.100000 Brand: Price: $ 5.52 |
Clutch Rod Connector | 1 | $ 5.52 | ||
| 10 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 2 | $ 2.91 | ||
| 11 | 09128-06014 Bolt (6x20) (NLA)
SKU: 09128-06014 Weight: 0.100000 Brand: Price: $ 0.68 |
Bolt (6x20) (NLA) | 1 | $ 0.68 | ||
| 12 | 09160-06145 Washer (6.2x19x3.0)
SKU: 09160-06145 Weight: 0.100000 Brand: Price: $ 1.78 |
Washer (6.2x19x3.0) | 1 | $ 1.78 | ||
| 13 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 14 | 09280-16005 O-Ring
SKU: 09280-16005 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 2 | $ 2.27 | ||
| 15 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
