Suzuki DF 6 Parts Listings - 2016
S/N 00602F-610001 to 00602F-61XXXX

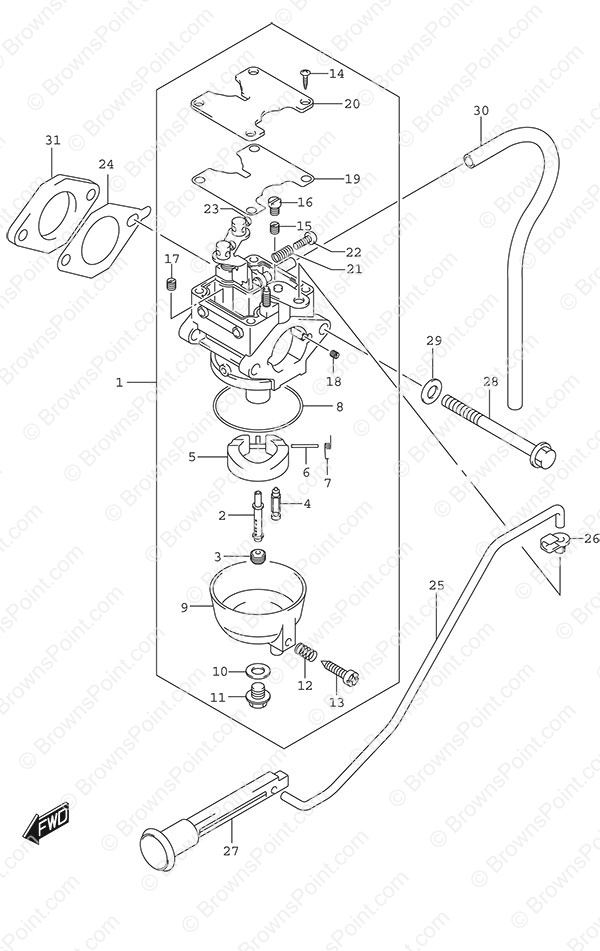

Fig. 128 - Carburetor

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13200-91JS1 Carburetor Assembly 1 $ 164.80
2 13236-91J40 Main Nozzle 1 $ 25.12
3-1 09491-68006 Main Jet #68 1 $ 16.18
3-2 09491-70018 Main Jet #70 1 $ 15.42
3-3 09491-66005 Main Jet #66 1 $ 15.42
4 13371-91J20 Needle Valve 1 $ 23.41
5 13250-97J00 Carburetor Float 1 $ 31.27
6 13254-97J00 Float Pin 1 $ 3.57
7 13268-97J30 Spring 1 $ 3.07
8 13251-97J00 Float Chamber Gasket 1 $ 6.78
9 13245-97J00 Float Chamber 1 $ 16.86
10 13249-97J00 Gasket 1 $ 2.59
11 13247-97J00 Screw 1 $ 4.14
12 13268-97J10 Spring 1 $ 4.39
13 13616-97J00 Screw 1 $ 22.62
14 13267-97J00 Screw (NLA) 4 $ 1.57

Not Available

15-1 09492-34004 Pilot Jet #34 1 $ 15.58
15-2 09492-36L01 Pilot Jet #36 1 $ 13.26
15-3 09492-38L01 Pilot Jet #38 1 $ 10.84

Not Available

16 13267-97J10 Screw 1 $ 4.20

Not Available

17 09493-21L01 Main Air Jet #105 1 $ 0.00
18 09493-95L01 Slow Air Jet #95 1 $ 0.00
19 13249-97J10 Gasket 1 $ 11.50

Not Available

20 13248-97J00 Plate (NLA) 1 $ 13.48

Not Available

21 13268-97J20 Spring 1 $ 4.74
22 13534-97J10 Screw 1 $ 3.71
24 13125-91J10 Carburetor Gasket 2 $ 2.63
25 13413-91JL0 Choke Rod 1 $ 7.28
26 13436-91J00 Choke Rod Connector 1 $ 3.08
27 13631-91J00 Choke Knob 1 $ 6.21
28 01547-06857 BOLT 6X85 2 $ 2.84
29 08322-01067 Washer (6.5x13x1.0) 2 $ 1.85
30 44421-13ER0 Hose (5x10x600) 1 $ 10.62
L:600->230
31 13124-91JL0 Carburetor Insulator 1 $ 10.35
23 13267-97J20 Screw (NLA) 2 $ 2.64

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
