Suzuki DF 70A Parts Listings - 2017
S/N 07003F-710001 to 07003F-71XXXX

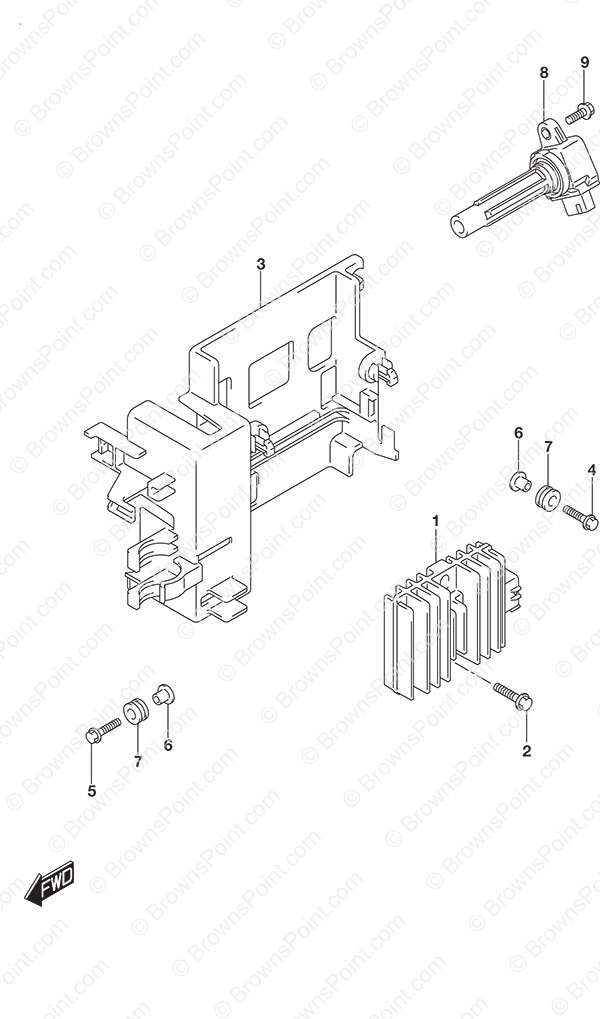

Fig. 310 - Rectifier/Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-87L00 Rectifier/Regulator Assembly
SKU: 32800-87L00 Weight: 0.500000 Brand: Price: $ 248.55 |
Rectifier/Regulator Assembly | 1 | $ 248.55 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 32890-87L10 Electric Parts Holder
SKU: 32890-87L10 Weight: 0.500000 Brand: Price: $ 20.51 |
Electric Parts Holder | 1 | $ 20.51 | ||
| 4 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 5 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 6 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 3 | $ 2.52 | ||
| 7 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 3 | $ 1.97 | ||
| 8 | 33410-87L00 Ignition Coil Assembly
SKU: 33410-87L00 Weight: 0.500000 Brand: Price: $ 139.04 |
Ignition Coil Assembly | 4 | $ 139.04 | ||
| 9 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 4 | $ 2.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
