Suzuki DF 4 Parts Listings - 2016
S/N 00402F-610001 to 00402F-61XXXX

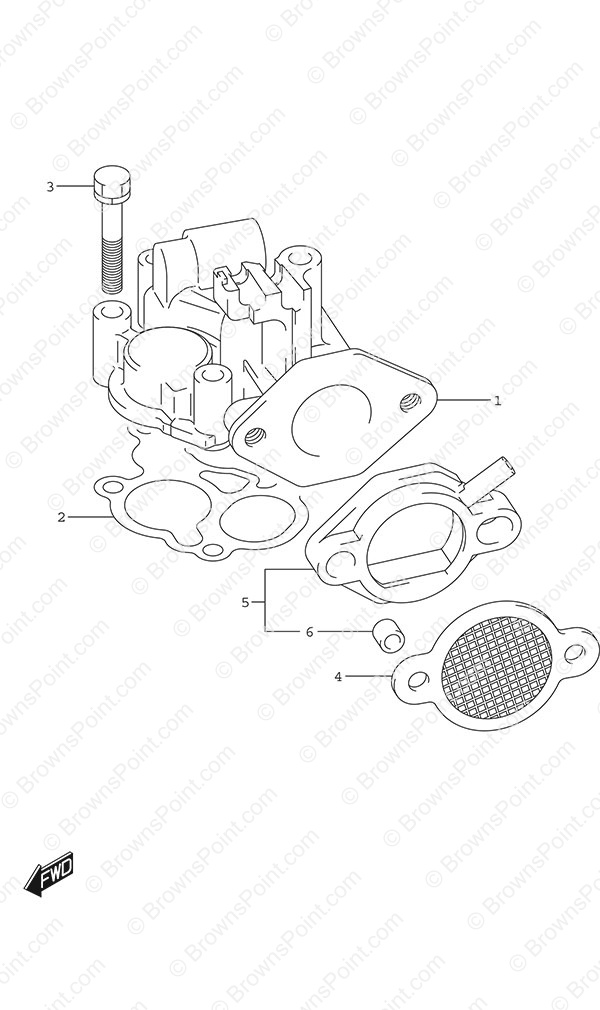

Fig. 122 - Intake Manifold

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13111-91J90 Intake Manifold 1 $ 28.72
2 13119-91J00 Inlet Manifold Gasket 1 $ 2.81
3 01570-06357 BOLT 4 $ 2.38
4 13710-91J20 Flame Arrester 1 $ 6.18
5 13720-91J30 Flame Arrester Holder 1 $ 36.42
6 09180-06310 Spacer (6.5x10x10) 2 $ 1.91

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
